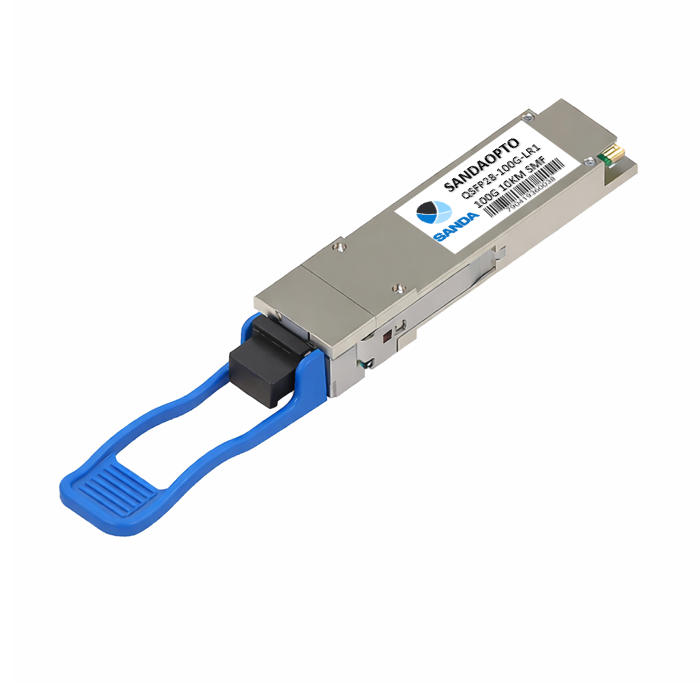

QSFP28-100G-LR1
Compliant to 100G Lambda MSA 100G LR1-20
Full-duplex transceiver module
4x25.78125Gbps NRZ electrical interface(CAUI-4)
106.25Gbps PAM4 based on a cooled EML TOSA transmitter
106.25Gbps PAM4 PIN Receiver
4W maximum power dissipation
Maximum link length of 20km on G.652 SMF with KP-FEC
Hot-pluggable QSFP28 form factor
Duplex LC receptacles
Operating case temperature (C:0 to 70 °C)
| Product PN | Interfaces | Fibere | Reach | Data Rate | Encoding | Form Factore | Temperature |
| SD-100G-LR1 | LC | SMF | 10Km | 100G | PAM4 | QSFP28 LR1 | 0~70°C |
| Compatible Brand | QSFP28-100G-LR1 | support | SANDAOPTO |
| Package | QSFP28 | Data rate | 100Gbps |
| Wavelength | 1310nm | Max Distance | 10km |
| Conn Type | Duplex LC | Fiber mode Type | single mode |
| Transmitter Type | EML | Receiver Type | PIN |
| Tx power | -1.4~4.5dBm | Sensitivity | -7.7dBm |
| Warranty Period | Overload | <2.5dBm | |
| Power Consumption | ≤4.5W | Extinction Ratio | >3.5dBm |
| DDM/DOM | support | Temperature Range | 0~70°C |
| MSA Standard | 100G Lambda MSA 100G-LR | Modulation (Optic) | PAW4 |
| CDR(W/O) | support | FEC inside (W/O) | support |
