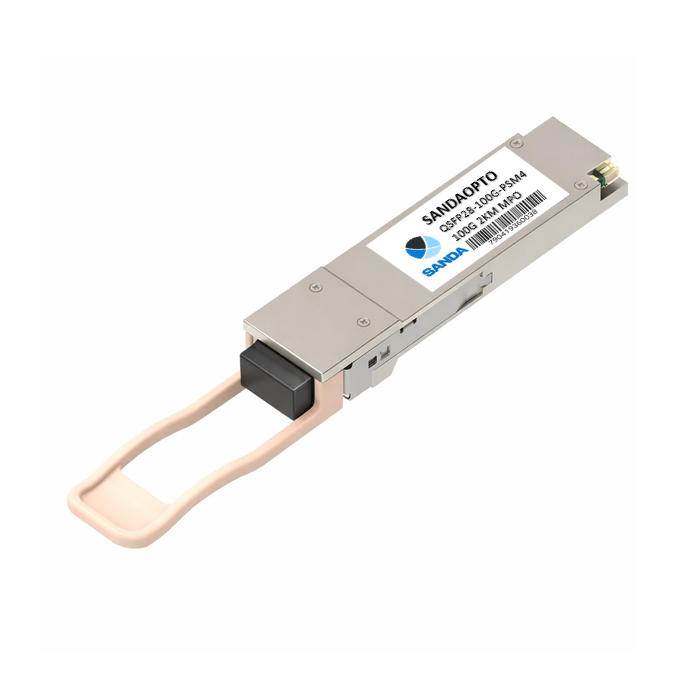

QSFP28-100G-PSM4
Supports 25.78125G per lane
MPO12 optical interface
Single +3.3V power supply
Hot pluggable QSFP28 footprint
Transmitter: 4x25G 1310nm DML transmitter TOSA
Receiver: 4x25Gb/s PIN ROSA
Up to 2Km distance with SMF
Built in digital diagnostic function
Operating case temperature range: 0℃ to 70℃
I2C Communication Interface
| Product PN | Interfaces | Fibere | Reach | Data Rate | Encoding | Form Factore | Temperature |
| SD-100G-PSM4 | MPO12 | SMF | 2Km | 4x25G | NRZ | QSFP28 PSM4 | 0~70°C |
| Compatible Brand | QSFP28-100G-PSM4 | Brand | SANDAOPTO |
| Package | QSFP28 | Data rate | 100Gbps |
| Wavelength | 1310nm | Max Distance | 2km |
| Conn Type | MPO | Fiber mode Type | single mode |
| Transmitter Type | DFB | Receiver Type | PIN |
| Tx power | :-6~2dBm | Sensitivity | <--12.66dBm |
| Warranty Period | 3 years | Overload | <2.5dBm |
| Power Consumption | ≤3.5W | Extinction Ratio | >3.5dB |
| DDM/DOM | support | Temperature Range | 0~70°C |
| MSA Standard | QSFP28 MSA, SFF-8636 | Modulation (Optic) | NRZ |
| CDR(W/O) | support |
