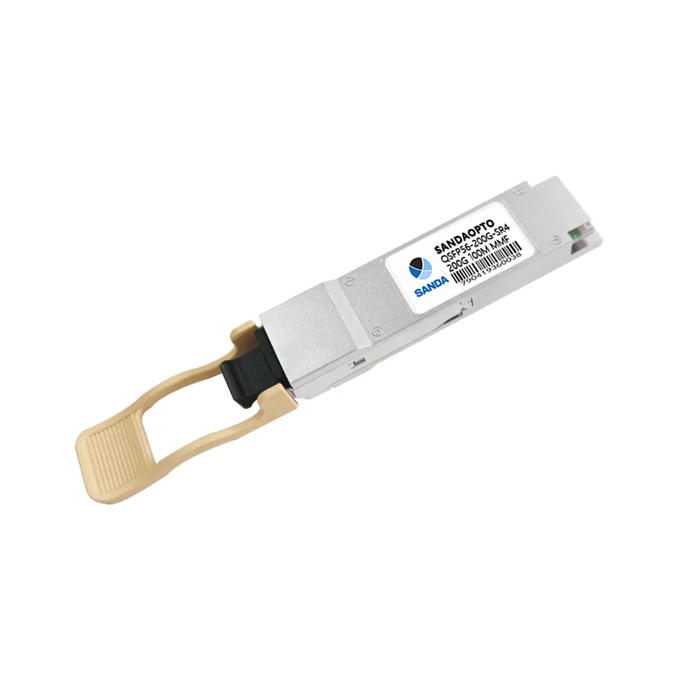

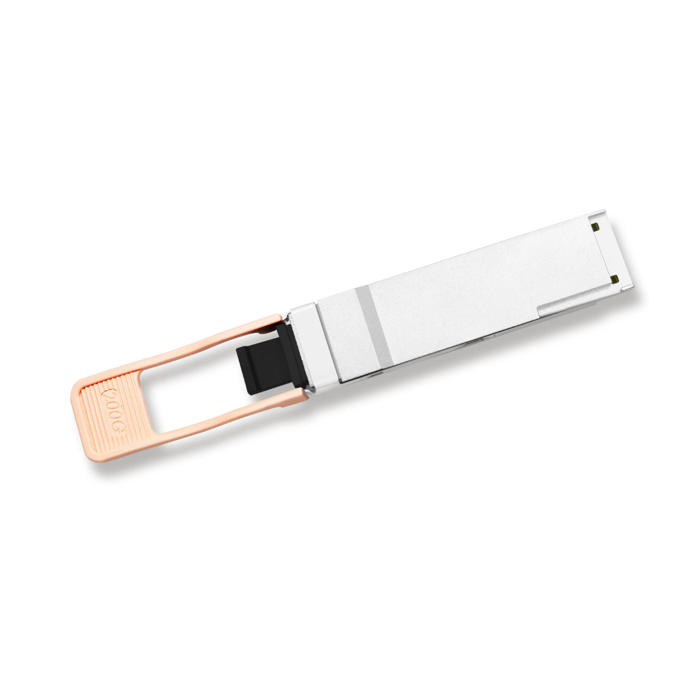

QSFP56 200G SR4

QSFP56 MSA compliant

4 parallel lanes on 850nm center wavelength

Compliant to IEEE 802.3bs Specification

Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC

Operating case temperature: 0 to 70℃

4x53.125Gb/s electrical interface (200GAUI-4)

Data Rate 53.125Gbps (PAM4) per channel.

Maximum power consumption 5W

MPO-12 APC connector

RoHS compliant

Product PN	Interfaces	Fibere	Reach	Data Rate	Encoding	Form Factore	Temperature
QSFP56-200G-SR4	MPO12	MMF	100M	4X53.12G	PAM4	QSFP56	0-70℃

Compatible Brand	QSFP56-200G-SR4	Brand	SANDAOPTO
Package	QSFP56	Data rate	4X53.12G
Wavelength	850nm	Max Distance	100m
Conn Type	MPO-12/UPC MPO-12/APC	Fiber mode Type	Multimode
Transmitter Type	VCSEL	Receiver Type	PIN
Tx power	-6.5~4dBm	Sensitivity	<-6.5dBm
Warranty Period	3 years	Overload	5dbm
Power Consumption	5W	Extinction Ratio	≥3
DDM/DOM	support	Temperature Range	0~70°C
MSA Standard	IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636	Modulation (Optic)	4*53.12G/PAM4
CDR(W/O)	support
