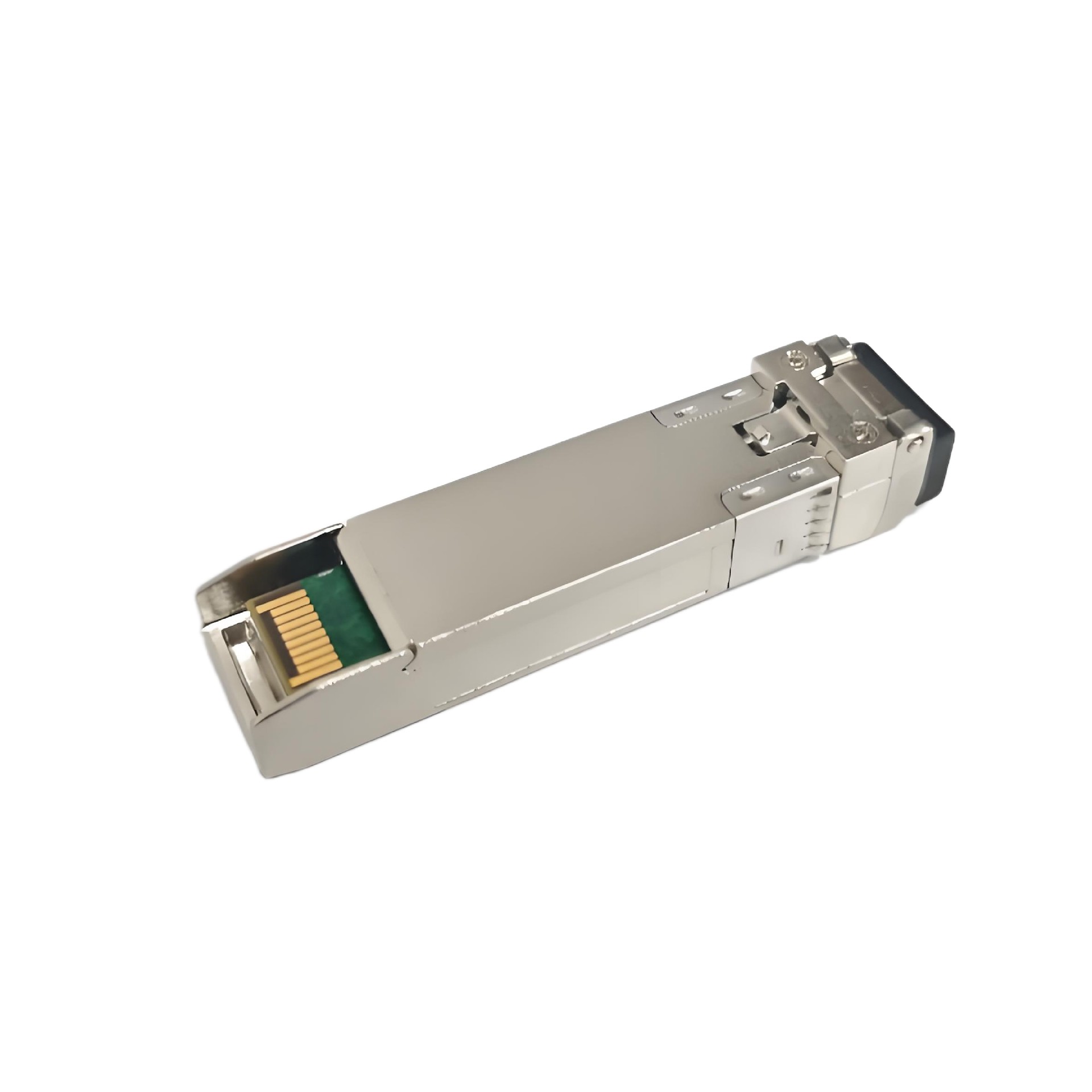

Hot swappable SFP56 external dimensions
Data rate up to 50Gbps
850nm VCSEL laser and PIN receiver
Equipped with digital monitoring function, providing powerful diagnostic capabilities
3.3V power supply voltage
Compliant with RoHS standards
IEEE802.3cd, SFF-8472, SFF-8402, SFF-8419, OIF-CEI-04.0
Operating temperature: 0 ° C~+70 ° C
Compliant with RoHS environmental standards (lead-free)
| Part number | Interfaces | Fibere | Reach | Date Rate | Encoding | Form Factore | Temperature |

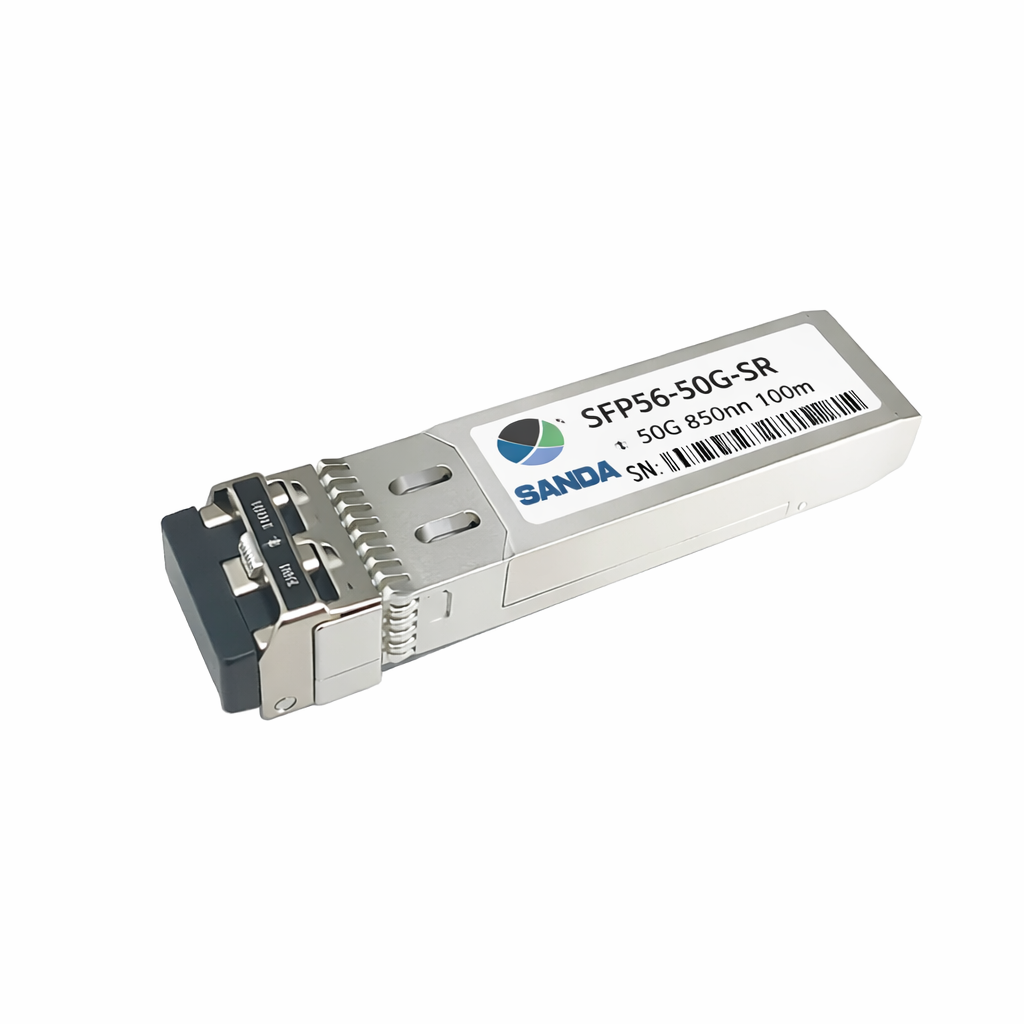

| SFP56-50G-SR | LC | OM4 | 100m | 50G | NRZ | SFP56 | C- |
| Compatible Brand | SFP56-50G-SR | Brand | SandaOpto |
| Package | SFP56 | Data rate | 50Gbps |
| Wavelength | 850nm | Max Distance | 100m |
| Conn Type | Duplex LC | Fiber mode Type | Multimode |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| Tx power | -6.4~4dBm | Sensitivity | <-8.4dBm |
| Warranty Period | 3years | Overload | <4dBm |
| Power Consumption | ≤1.5W | Extinction Ratio | >3dB |
| DDM/DOM | support | Temperature Range | 0~70°C |
| MSA Standard | IEEE802.3cd, SFF-8472, SFF-8402, SFF-8419, OIF-CEI-04.0 | Modulation (Optic) | NRZ |
| CDR(W/O) | support | FEC inside (W/O) |
