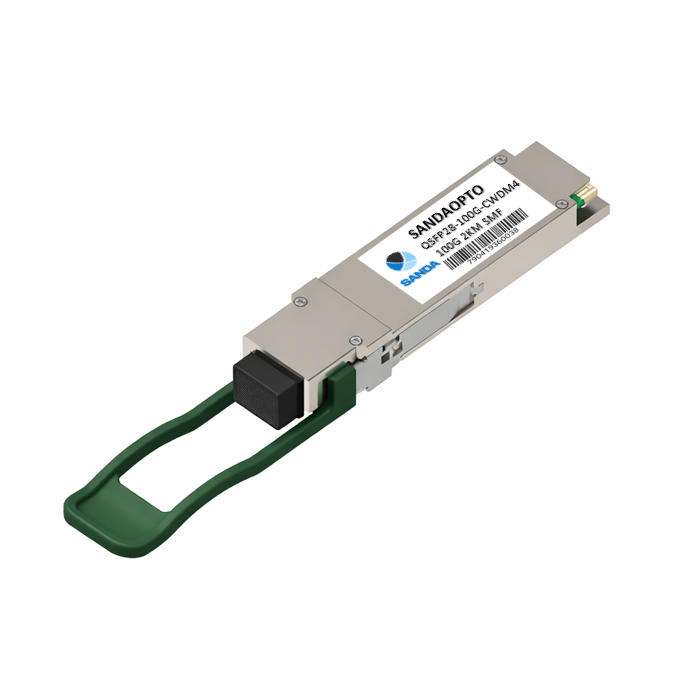

QSFP28-100G-CWDM4
4x25G Electrical Serial Interface
Compliant with 4x28G(CEI-28G-VSR)
Duplex LC receptacle optical interface
Hot-pluggable QSFP28 MSA form factor
AC coupling of CML signals
Transmitter: cooled 4x25Gb/s CWDM TOSA (1270，1290，1310，1330nm)
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation(Max:3.5W)
Built in digital diagnostic function
Operating case temperature (C:0 to 70 °C)
| Product PN | Interfaces | Fibere | Reach | Data Rate | Encoding | Form Factore | Temperature |
| SD-100G-CWDM4 | LC | SMF | 2Km | 100G | NRZ | QSFP28 CWDM4 | 0~70°C |
| Compatible Brand | QSFP28-100G-CWDM4 | support | SANDAOPTO |
| Package | QSFP28 | Data rate | 100bps |
| Wavelength | 1270/1290/1310/1330nm | Max Distance | 2km |
| Conn Type | Duplex LC | Fiber mode Type | single mode |
| Transmitter Type | DML CWDM | Receiver Type | PIN |
| Tx power | -6.5~2.5dBm | Sensitivity | <-11.5dBm |
| Warranty Period | 3 years | Overload | <2.5dBm |
| Power Consumption | ≤3.5W | Extinction Ratio | >3.5dB |
| DDM/DOM | support | Temperature Range | 0~70°C |
| MSA Standard | IEEE 802.3ba, IEEE 802.3bm, 100G CWDM4 MSA, QSFP28 MSA, SFF-8665, SFF-8636 | Modulation (Optic) | NRZ |
| CDR(W/O) | support | FEC inside (W/O) | support |
