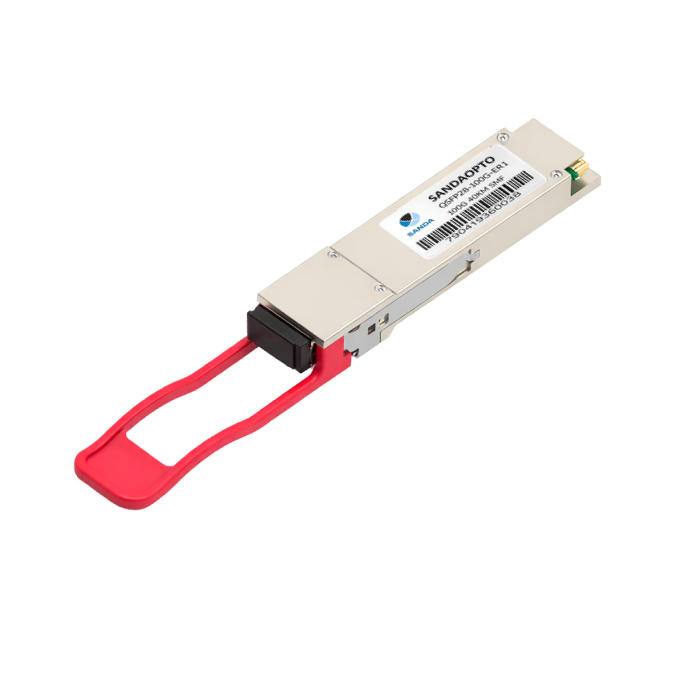

QSFP28-100G-ER1
Compliant to 100G Lambda MSA 100G ER1-40
4x25.78125Gbps NRZ electrical interface(CAUI-4)
106.25Gbps PAM4 based on a cooled EML TOSA transmitter
106.25Gbps PAM4 APD Receiver
4W maximum power dissipation
Maximum link length of 40km on G.652 SMF with KP-FEC
3.3V power supply voltage
Built-in digital diagnostic functions
Operating case temperature (C:0 to 70 °C)
| Product PN | Interfaces | Fibere | Reach | Data Rate | Encoding | Form Factore | Temperature |
| SD-100G-ER1 | LC | SMF | 40Km | 100G | PAM4 | QSFP28 ER1 | 0~70°C |
| Compatible Brand | QSFP28-100G-ER1 | Brand | SANDAOPTO |
| Package | QSFP28 | Data rate | 100Gbps |
| Wavelength | 1310nm | Max Distance | 40km |
| Conn Type | Duplex LC | Fiber mode Type | single mode |
| Transmitter Type | EML | Receiver Type | PIN |
| Tx power | 1.7~7.1dBm | Sensitivity | -16dBm |
| Warranty Period | 3 years | Overload | <2.5dBm |
| Power Consumption | ≤5.5W | Extinction Ratio | ＞5dB |
| DDM/DOM | support | Temperature Range | 0~70°C |
| MSA Standard | SFF-8636 Rev 2.10a, SFF-8679 V1.8,100G lambda MSA 100GER1-40 QSFP28 MSA | Modulation (Optic) | PAW4 |
| CDR(W/O) | support | FEC inside (W/O) | support |
