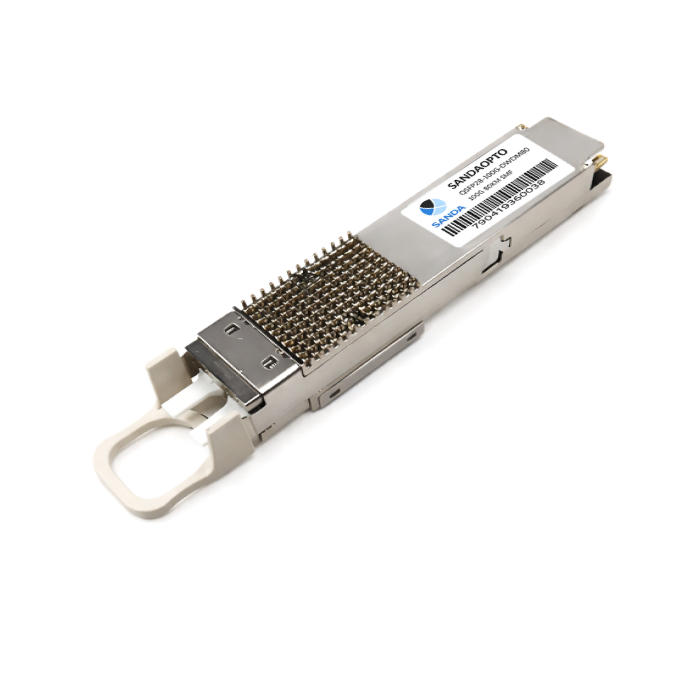

QSFP28-100G-DW80
Hot pluggable QSFP28 MSA form factor
Up to 80km reach for G.652 SMF with transport white box
Single +3.3V power supply
Temperature Range 0 to 85°C
Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
Receiver: 2*27.5Gbaud/s Pin-PD ROSA
4*25G CAUI4 electrical interface
Integrated SFEC with high coding gain
PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
Dual CS adaptor, Compatible with RoHS
| Product PN | Interfaces | Fibere | Reach | Data Rate | Encoding | Form Factore | Temperature |
| SD-100G-DWDM80 | LC | SMF | 80Km | 100G | NRZ | QSFP28 DWDM | 0-85°C |
| Compatible Brand | QSFP28-100G-DWDM80 | Brand | SANDAOPTO |
| Package | QSFP28 | Data rate | 100Gbps |
| Wavelength | CH17-CH61 | Max Distance | 80km |
| Conn Type | LC | Fiber mode Type | single mode |
| Transmitter Type | DWDM | Receiver Type | PIN |
| Tx power | -1 ~ +4dBm | Sensitivity | -13dBm |
| Warranty Period | 3 years | Overload | |
| Power Consumption | ≤7W | Extinction Ratio | 6 dB |
| DDM/DOM | support | Temperature Range | 0~85 °C |
| MSA Standard | Modulation (Optic) | ||
| CDR(W/O) | support | FEC inside (W/O) | support |
