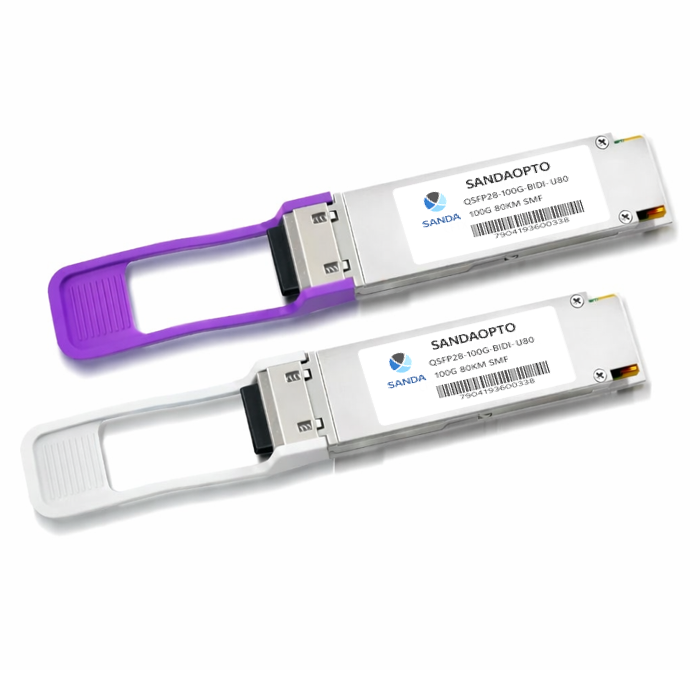

QSFP28 100G BIDI U80
Supports 103.125Gb/s aggregate bit rate
Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX
LAN WDM EML laser and PIN receiver with SOA
Up to 80km reach for G.652 SMF
Hot pluggable 38 pin electrical interface
Single +3.3V power supply
Maximum power consumption 5.5W
Operating case temperature (C:0 to 70 °C)
| Product PN | Interfaces | Fibere | Reach | Data Rate | Encoding | Form Factore | Temperature |
| SD-100G-BIDI-U80 | LC | SMF | 80Km | 4x25G | NRZ | 100G BiDi 80Km | 0~70°C |
| Compatible Brand | QSFP28-100G-BIDI-U80 | Brand | SANDAOPTO |
| Package | QSFP28 | Data rate | 100Gbps |
| Wavelength | 1280nm | Max Distance | 80km |
| Conn Type | Single work LC | Fiber mode Type | single mode |
| Transmitter Type | EML | Receiver Type | SOA+PIN |
| Tx power | 2.5~6.5dBm | Sensitivity | -28dBm |
| Warranty Period | 3 years | Overload | <0dBm |
| Power Consumption | <6.5W | Extinction Ratio | >6dB |
| DDM/DOM | support | Temperature Range | 0~70°C |
| MSA Standard | Modulation (Optic) | PAW4 | |
| CDR(W/O) | support | FEC inside (W/O) | support |
