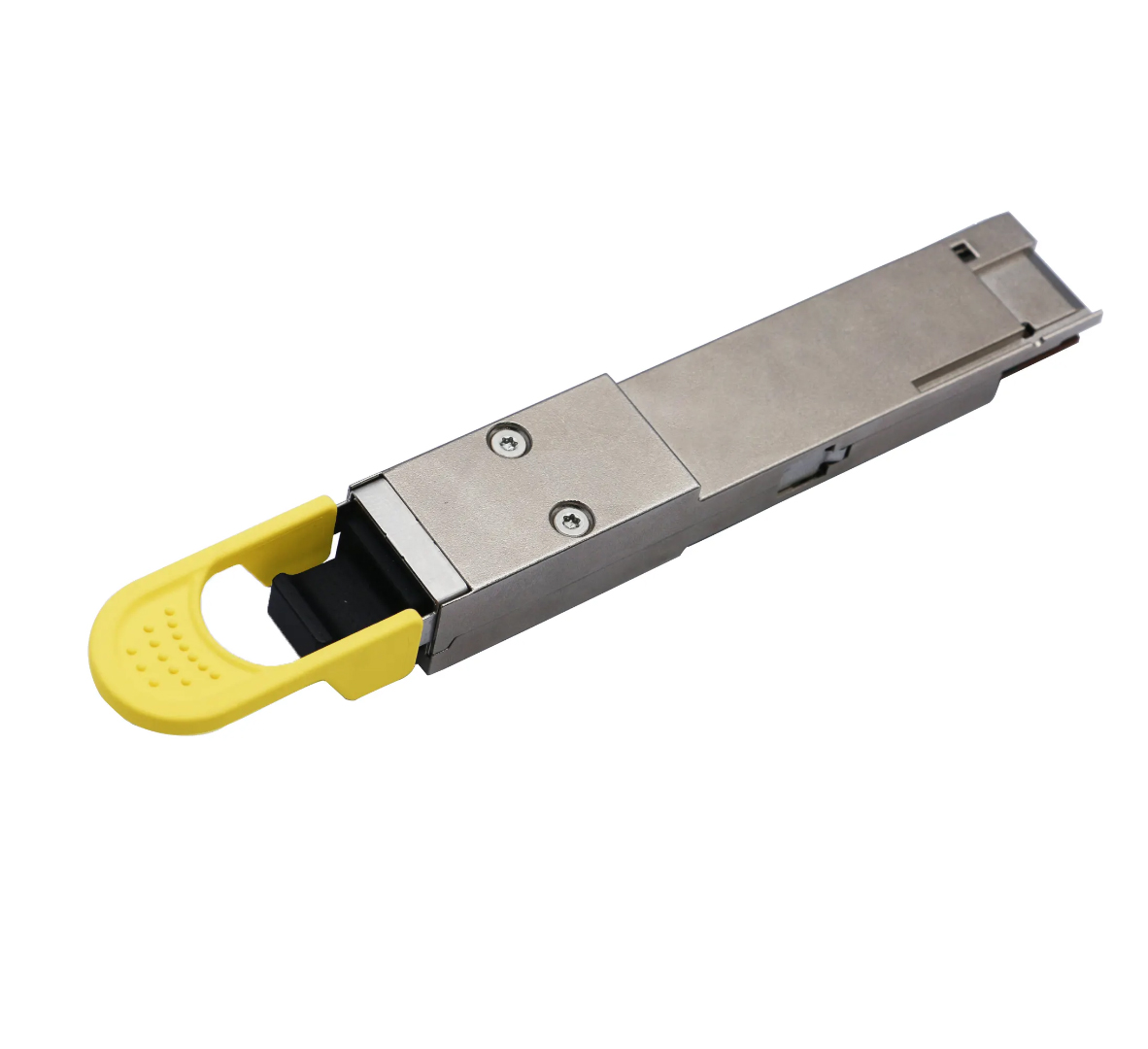

QSFPDD-400G-DR4
Hot swappable QSFP-DD size
The maximum link length on single-mode fiber (SMF) is 500m
8x50G PAM4 400GAUI-8 electrical interface
4x100G PAM4 EML 1310nm transmitter
Single channel 3.3V power supply
MPO-12-APC socket type
Compliant with RoHS environmental standards (lead-free)
Operating temperature: 0 ° C~+70 ° C
| Product | QSFPDD-400G-DR4 |
| Description | 100% OEM compatible 400GBase-DR4 QSFP-DD transceiver |
| Form Factor | QSFP-DD |
| Max Data rate | 400Gbps |
| Fiber type | SMF |
| Max Distance | 500M |
| Wavelength | 1310nm |
| Connector | MPO-12/APC |
| Transmitter and ReceiverType | EML, PIN |
| Tx power & Sensitivity | TX power:-2.9~4dBm Sens<-5.9dBm Overload:4dbm |
| Extinction Ratio | 3.5dB |
| Power Consumption | ≤9W |
| DDMI | Supported |
| Temperature Range | 0~70°C |
| Modulation | Electric:8x 53.125Gb/s PAM4, Optic: 4x 106.25Gb/s PAM4 |
| Protocols: | IEEE 802.3bs, QSFP-DD CMIS Rev 5.0, QSFP-DD MSA HW Rev 5.1 |
