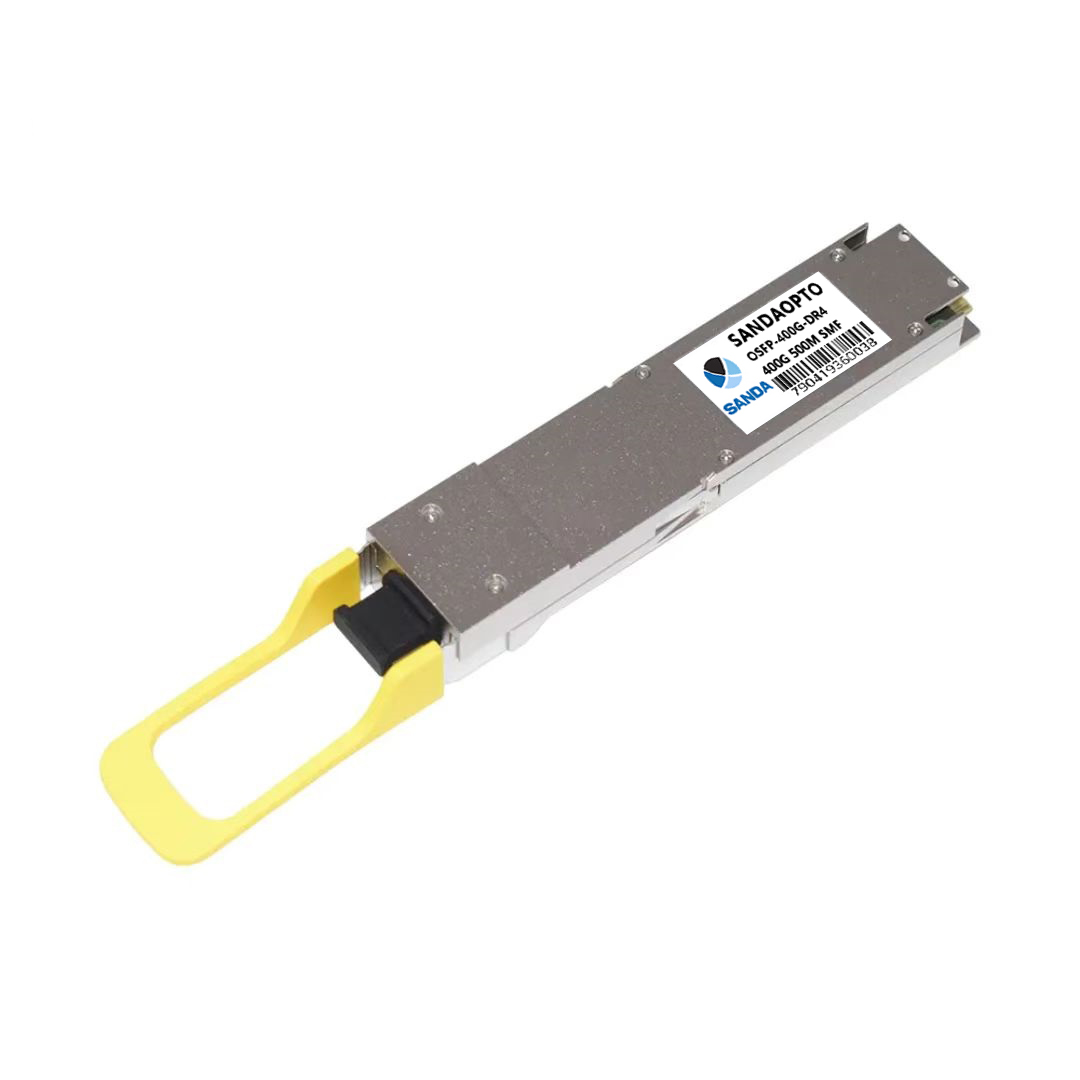

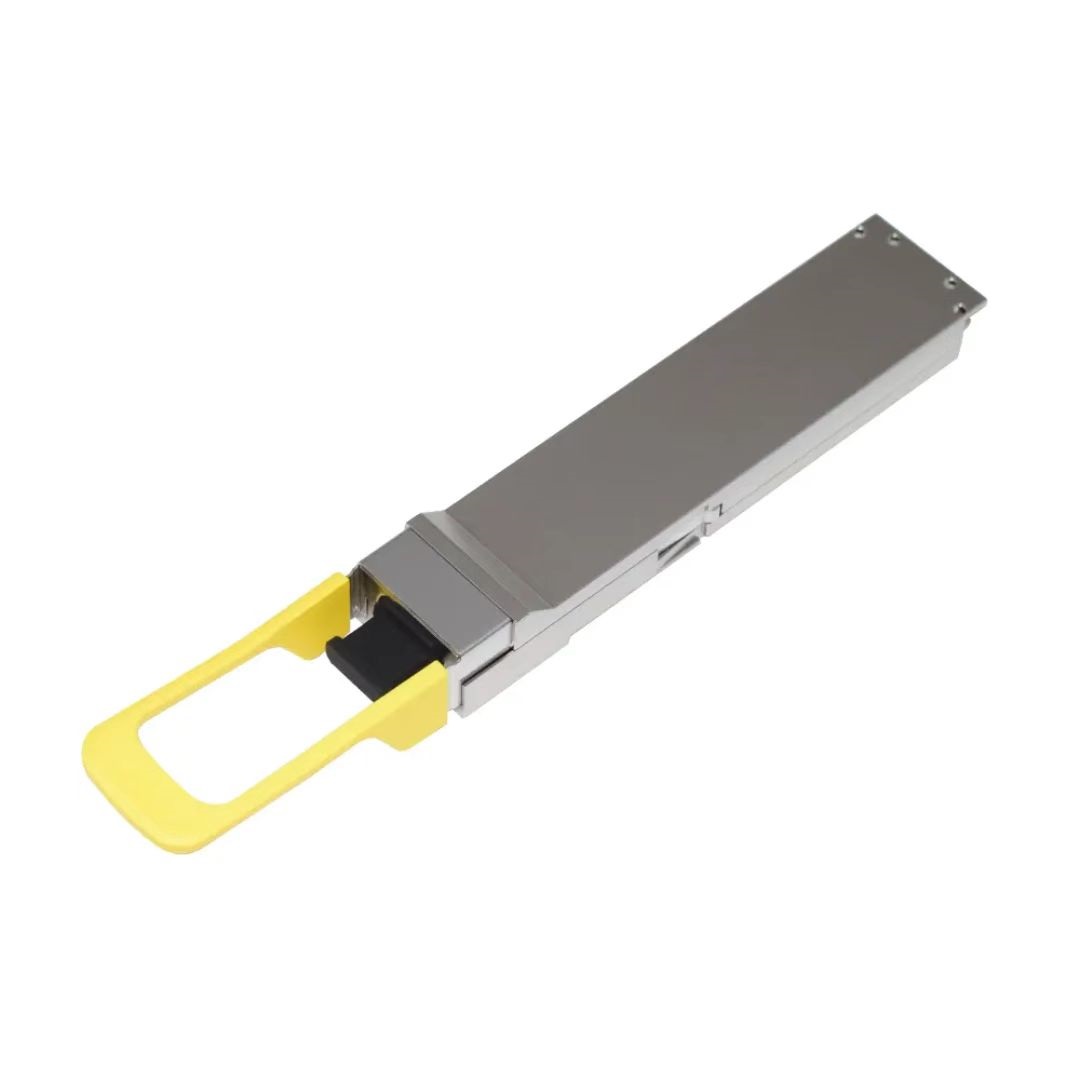

OSFP-400G-DR4
Hot swappable OSFP external dimensions
The maximum link length on single-mode fiber (SMF) is 500m
Compliant with IEEE 802.3 standard
4x100G PAM4 EML 1310nm transmitter
Single channel 3.3V power supply
MPO-12 interface type
Compliant with RoHS environmental standards (lead-free)
Operating temperature: 0 ° C~+70 ° C
| Product | OSFP-400G-DR4 |
| Description | 100% OEM compatible 400GBase-DR4 OSFP transceiver |
| Form Factor | OSFP |
| Max Data rate | 400Gbps |
| Fiber type | SMF |
| Max Distance | 2KM |
| Wavelength | 1310nm |
| Transmitter and ReceiverType | CWDM EML, PIN |
| Connector | MPO-12/APC |
| Tx power & Sensitivity | TX power:-2.9~4dBm Sens<-5.9dBm Overload:5dbm |
| Extinction Ratio | 3.5dBM |
| Power Consumption | 10W |
| DDMI | Supported |
| Temperature Range | 0~70°C |
| Modulation | Electric:8x50G-PAM4, Optic: 4x100G-PAM4 |
| Protocols: | CMIS 5.2, IEEE 802.3bs-400GAUI-8, OSFP MSA, IEEE 802.3 bs-400GBASE-DR4 |
