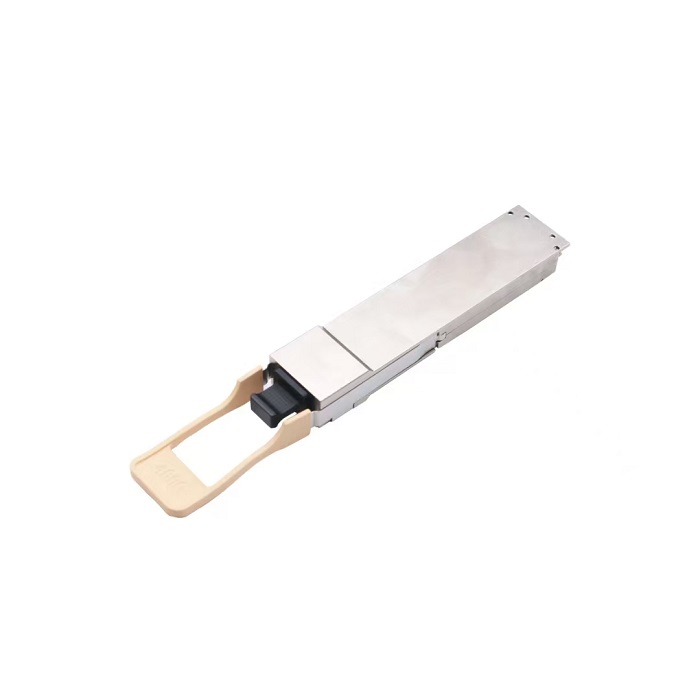

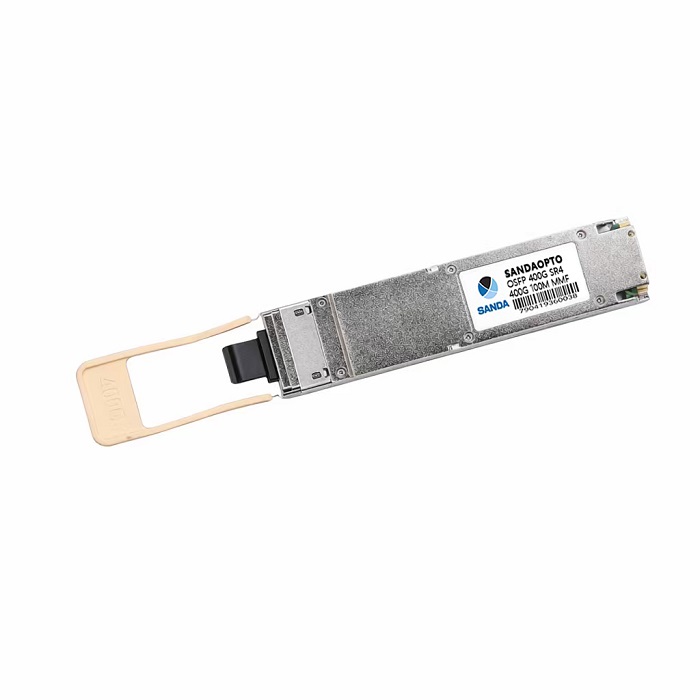

OSFP-400G-SR4
Hot swappable OSFP type external dimensions
Data rate up to 425Gbps (4x 106.25Gbps)
850nm VCSEL laser and PIN receiver
Up to 100m on MMF (OM4)
High speed I/O electrical interface (400GAUI-4)
MPO-12-APC socket type
Compliant with RoHS environmental standards (lead-free)
Operating temperature: 0 ° C~+70 ° C
| Product | OSFP-400G-SR4 |
| Description | 100% OEM compatible 400GBase-SR4 OSFP transceiver |
| Form Factor | OSFP |
| Max Data rate | 400Gbps |
| Fiber type | MMF |
| Max Distance | 100M |
| Wavelength | 850nm |
| Transmitter and ReceiverType | VCSEL, PIN |
| Connector | MPO-12/APC |
| Tx power & Sensitivity | TX power:-4.6~4dBm Sens<-6.4dBm Overload:4dbm |
| Extinction Ratio | >2.5dBM |
| Power Consumption | ≤9W |
| DDMI | Supported |
| Temperature Range | 0~70°C |
| Modulation | Electric:PAW4, Optic: PAW4 |
| Protocols: | IEEE 802.3cd, OSFP MSA, CMIS 4.1 |
